Qemu初始化流程

时间轴

时间轴

2025-11-21

1. init

本文介绍了Qemu初始化流程，重点分析了RISC-V virt Machine的创建过程。文章通过gdb反向定位源码，根据QOM机制在class_init和instance_init处设置断点，观察到main函数先调用qemu_init再调用qemu_create_machine创建machine，随后先创建class再实例化QObject。接着详细描述了virt_machine_init函数的功能：按cluster创建CPU核心、初始化各种设备，并为virt在内存中生成设备树（DTB）。文章还解释了OpenSBI固件的加载时机——在整个virt Machine就绪后，通过machine_done回调调用riscv_find_and_load_firmware加载默认固件。最后，文章说明了vCPU执行第一条指令的初始化过程，即env->pc被赋值为resetvec（默认值），并提及了使用g

环境

wget https://download.qemu.org/qemu-10.1.2.tar.xz
tar xvJf qemu-10.1.2.tar.xz
cd qemu-10.1.2
mkdir -p output
./configure --prefix=$PWD/output --target-list=aarch64-softmmu,riscv64-softmmu --enable-debug
bear -- make -j$(nproc)

创建.clangd

CompileFlags:
  Add: -Wno-unknown-warning-option
  Remove: [-m*, -f*]

virt Machine初始化

最方便的办法，是通过 gdb 来反向定位源码。

按照前面 QOM 的讲解，virt Machine 必定属于一个 QObject，我们可以在它的 class 初始化或者 object 实例化的源码位置打一个断点，来观察调用栈。这里我们先搜索一下 virt Machine 源码里关于 typeinfo 相关的代码：

virt_machine_typeinfo

static const TypeInfo virt_machine_typeinfo = {
    .name       = MACHINE_TYPE_NAME("virt"),
    .parent     = TYPE_MACHINE,
    .class_init = virt_machine_class_init,
    .instance_init = virt_machine_instance_init,
    .instance_size = sizeof(RISCVVirtState),
    .interfaces = (const InterfaceInfo[]) {
         { TYPE_HOTPLUG_HANDLER },
         { }
    },
};

static void virt_machine_init_register_types(void)
{
    type_register_static(&virt_machine_typeinfo);
}

type_init(virt_machine_init_register_types)

所以，我们可以给virt_machine_class_init()和virt_machine_instance_init()分别打断点。

使用下面的命令用 gdb 调试 QEMU :

$ gdb ./build/qemu-system-riscv64 -ex "set args -M virt -nographic"
(gdb) b virt_machine_class_init
(gdb) b virt_machine_instance_init
(gdb) r
...

virt_machine_class_init

首先我们跟踪到的，是virt_machine_class_init函数

hw/riscv/virt.c

static void virt_machine_class_init(ObjectClass *oc, const void *data)
{
    MachineClass *mc = MACHINE_CLASS(oc);
    HotplugHandlerClass *hc = HOTPLUG_HANDLER_CLASS(oc);

    mc->desc = "RISC-V VirtIO board";
    mc->init = virt_machine_init;
    mc->max_cpus = VIRT_CPUS_MAX;
    mc->default_cpu_type = TYPE_RISCV_CPU_BASE;
    mc->block_default_type = IF_VIRTIO;
    mc->no_cdrom = 1;
    mc->pci_allow_0_address = true;
    mc->possible_cpu_arch_ids = riscv_numa_possible_cpu_arch_ids;
    mc->cpu_index_to_instance_props = riscv_numa_cpu_index_to_props;
    mc->get_default_cpu_node_id = riscv_numa_get_default_cpu_node_id;
    mc->numa_mem_supported = true;
    /* platform instead of architectural choice */
    mc->cpu_cluster_has_numa_boundary = true;
    mc->default_ram_id = "riscv_virt_board.ram";
    assert(!mc->get_hotplug_handler);
    mc->get_hotplug_handler = virt_machine_get_hotplug_handler;

    hc->plug = virt_machine_device_plug_cb;

    machine_class_allow_dynamic_sysbus_dev(mc, TYPE_RAMFB_DEVICE);
    machine_class_allow_dynamic_sysbus_dev(mc, TYPE_UEFI_VARS_SYSBUS);
#ifdef CONFIG_TPM
    machine_class_allow_dynamic_sysbus_dev(mc, TYPE_TPM_TIS_SYSBUS);
#endif

    object_class_property_add_bool(oc, "aclint", virt_get_aclint,
                                   virt_set_aclint);
    object_class_property_set_description(oc, "aclint",
                                          "(TCG only) Set on/off to "
                                          "enable/disable emulating "
                                          "ACLINT devices");

    object_class_property_add_str(oc, "aia", virt_get_aia,
                                  virt_set_aia);
    object_class_property_set_description(oc, "aia",
                                          "Set type of AIA interrupt "
                                          "controller. Valid values are "
                                          "none, aplic, and aplic-imsic.");

    object_class_property_add_str(oc, "aia-guests",
                                  virt_get_aia_guests,
                                  virt_set_aia_guests);
    {
        g_autofree char *str =
            g_strdup_printf("Set number of guest MMIO pages for AIA IMSIC. "
                            "Valid value should be between 0 and %d.",
                            VIRT_IRQCHIP_MAX_GUESTS);
        object_class_property_set_description(oc, "aia-guests", str);
    }

    object_class_property_add(oc, "acpi", "OnOffAuto",
                              virt_get_acpi, virt_set_acpi,
                              NULL, NULL);
    object_class_property_set_description(oc, "acpi",
                                          "Enable ACPI");

    object_class_property_add(oc, "iommu-sys", "OnOffAuto",
                              virt_get_iommu_sys, virt_set_iommu_sys,
                              NULL, NULL);
    object_class_property_set_description(oc, "iommu-sys",
                                          "Enable IOMMU platform device");
}

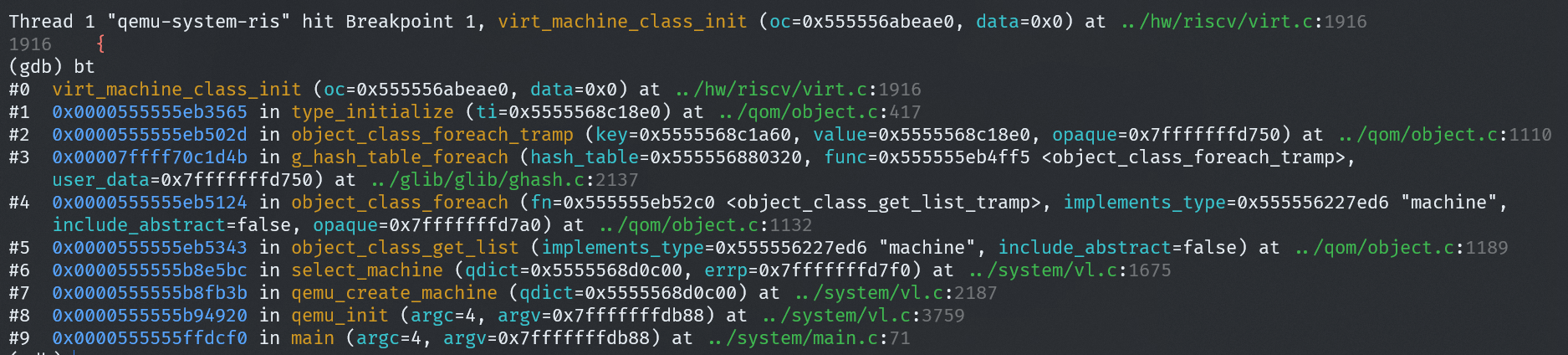

调用栈：

virt_machine_init调用栈

virt_machine_instance_init

hw/riscv/virt.c

static void virt_machine_instance_init(Object *obj)
{
    RISCVVirtState *s = RISCV_VIRT_MACHINE(obj);

    virt_flash_create(s);

    s->oem_id = g_strndup(ACPI_BUILD_APPNAME6, 6);
    s->oem_table_id = g_strndup(ACPI_BUILD_APPNAME8, 8);
    s->acpi = ON_OFF_AUTO_AUTO;
    s->iommu_sys = ON_OFF_AUTO_AUTO;
}

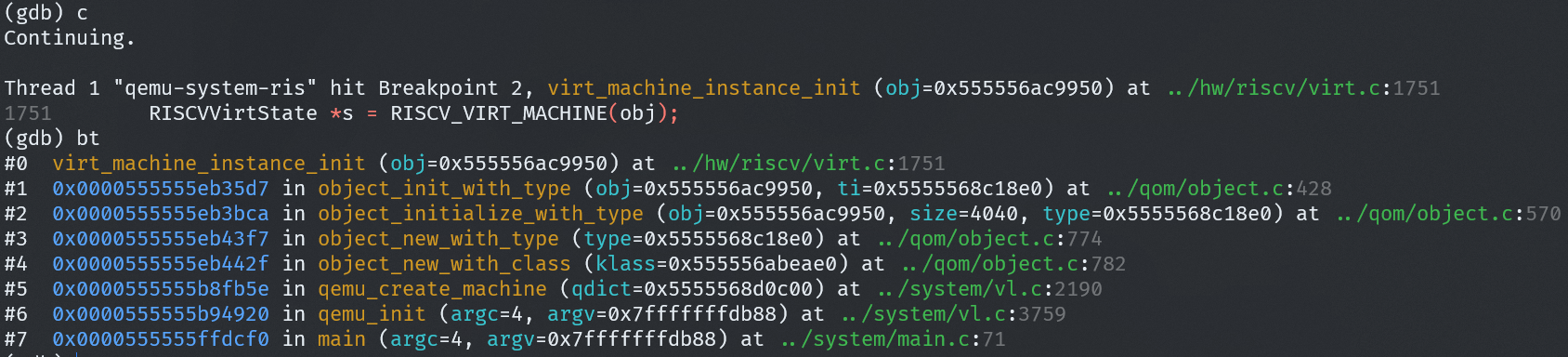

调用栈：

virt_machine_instance_init

这里可以看到，main 函数首先调用了 qemu_init 函数，然后再调用 qemu_create_machine 函数来创建 machine:

main() → qemu_init() → qemu_create_machine()

然后先创建 class，然后再实例化 qobject，这和前面讲解 QOM 给出的流程一致。

virt_machine_init

对于virt_machine_class_init，其把定义的MachineClass的init赋值为virt_machine_init

MachineClass *mc = MACHINE_CLASS(oc);
   HotplugHandlerClass *hc = HOTPLUG_HANDLER_CLASS(oc);
mc->desc = "RISC-V VirtIO board";
mc->init = virt_machine_init;

hw/riscv/virt.c

static void virt_machine_init(MachineState *machine)
{
    RISCVVirtState *s = RISCV_VIRT_MACHINE(machine);
    MemoryRegion *system_memory = get_system_memory();
    MemoryRegion *mask_rom = g_new(MemoryRegion, 1);
    DeviceState *mmio_irqchip, *virtio_irqchip, *pcie_irqchip;
    int i, base_hartid, hart_count;
    int socket_count = riscv_socket_count(machine);

    s->memmap = virt_memmap;

    /* Check socket count limit */
    if (VIRT_SOCKETS_MAX < socket_count) {
        error_report("number of sockets/nodes should be less than %d",
            VIRT_SOCKETS_MAX);
        exit(1);
    }

    if (!virt_aclint_allowed() && s->have_aclint) {
        error_report("'aclint' is only available with TCG acceleration");
        exit(1);
    }

    /* Initialize sockets */
    mmio_irqchip = virtio_irqchip = pcie_irqchip = NULL;
    for (i = 0; i < socket_count; i++) {
        g_autofree char *soc_name = g_strdup_printf("soc%d", i);

        if (!riscv_socket_check_hartids(machine, i)) {
            error_report("discontinuous hartids in socket%d", i);
            exit(1);
        }

        base_hartid = riscv_socket_first_hartid(machine, i);
        if (base_hartid < 0) {
            error_report("can't find hartid base for socket%d", i);
            exit(1);
        }

        hart_count = riscv_socket_hart_count(machine, i);
        if (hart_count < 0) {
            error_report("can't find hart count for socket%d", i);
            exit(1);
        }

        object_initialize_child(OBJECT(machine), soc_name, &s->soc[i],
                                TYPE_RISCV_HART_ARRAY);
        object_property_set_str(OBJECT(&s->soc[i]), "cpu-type",
                                machine->cpu_type, &error_abort);
        object_property_set_int(OBJECT(&s->soc[i]), "hartid-base",
                                base_hartid, &error_abort);
        object_property_set_int(OBJECT(&s->soc[i]), "num-harts",
                                hart_count, &error_abort);
        sysbus_realize(SYS_BUS_DEVICE(&s->soc[i]), &error_fatal);

        if (virt_aclint_allowed() && s->have_aclint) {
            if (s->aia_type == VIRT_AIA_TYPE_APLIC_IMSIC) {
                /* Per-socket ACLINT MTIMER */
                riscv_aclint_mtimer_create(s->memmap[VIRT_CLINT].base +
                            i * RISCV_ACLINT_DEFAULT_MTIMER_SIZE,
                        RISCV_ACLINT_DEFAULT_MTIMER_SIZE,
                        base_hartid, hart_count,
                        RISCV_ACLINT_DEFAULT_MTIMECMP,
                        RISCV_ACLINT_DEFAULT_MTIME,
                        RISCV_ACLINT_DEFAULT_TIMEBASE_FREQ, true);
            } else {
                /* Per-socket ACLINT MSWI, MTIMER, and SSWI */
                riscv_aclint_swi_create(s->memmap[VIRT_CLINT].base +
                            i * s->memmap[VIRT_CLINT].size,
                        base_hartid, hart_count, false);
                riscv_aclint_mtimer_create(s->memmap[VIRT_CLINT].base +
                            i * s->memmap[VIRT_CLINT].size +
                            RISCV_ACLINT_SWI_SIZE,
                        RISCV_ACLINT_DEFAULT_MTIMER_SIZE,
                        base_hartid, hart_count,
                        RISCV_ACLINT_DEFAULT_MTIMECMP,
                        RISCV_ACLINT_DEFAULT_MTIME,
                        RISCV_ACLINT_DEFAULT_TIMEBASE_FREQ, true);
                riscv_aclint_swi_create(s->memmap[VIRT_ACLINT_SSWI].base +
                            i * s->memmap[VIRT_ACLINT_SSWI].size,
                        base_hartid, hart_count, true);
            }
        } else if (tcg_enabled()) {
            /* Per-socket SiFive CLINT */
            riscv_aclint_swi_create(
                    s->memmap[VIRT_CLINT].base + i * s->memmap[VIRT_CLINT].size,
                    base_hartid, hart_count, false);
            riscv_aclint_mtimer_create(s->memmap[VIRT_CLINT].base +
                    i * s->memmap[VIRT_CLINT].size + RISCV_ACLINT_SWI_SIZE,
                    RISCV_ACLINT_DEFAULT_MTIMER_SIZE, base_hartid, hart_count,
                    RISCV_ACLINT_DEFAULT_MTIMECMP, RISCV_ACLINT_DEFAULT_MTIME,
                    RISCV_ACLINT_DEFAULT_TIMEBASE_FREQ, true);
        }

        /* Per-socket interrupt controller */
        if (s->aia_type == VIRT_AIA_TYPE_NONE) {
            s->irqchip[i] = virt_create_plic(s->memmap, i,
                                             base_hartid, hart_count);
        } else {
            s->irqchip[i] = virt_create_aia(s->aia_type, s->aia_guests,
                                            s->memmap, i, base_hartid,
                                            hart_count);
        }

        /* Try to use different IRQCHIP instance based device type */
        if (i == 0) {
            mmio_irqchip = s->irqchip[i];
            virtio_irqchip = s->irqchip[i];
            pcie_irqchip = s->irqchip[i];
        }
        if (i == 1) {
            virtio_irqchip = s->irqchip[i];
            pcie_irqchip = s->irqchip[i];
        }
        if (i == 2) {
            pcie_irqchip = s->irqchip[i];
        }
    }

    if (kvm_enabled() && virt_use_kvm_aia_aplic_imsic(s->aia_type)) {
        kvm_riscv_aia_create(machine, IMSIC_MMIO_GROUP_MIN_SHIFT,
                             VIRT_IRQCHIP_NUM_SOURCES, VIRT_IRQCHIP_NUM_MSIS,
                             s->memmap[VIRT_APLIC_S].base,
                             s->memmap[VIRT_IMSIC_S].base,
                             s->aia_guests);
    }

    if (riscv_is_32bit(&s->soc[0])) {
#if HOST_LONG_BITS == 64
        /* limit RAM size in a 32-bit system */
        if (machine->ram_size > 10 * GiB) {
            machine->ram_size = 10 * GiB;
            error_report("Limiting RAM size to 10 GiB");
        }
#endif
        virt_high_pcie_memmap.base = VIRT32_HIGH_PCIE_MMIO_BASE;
        virt_high_pcie_memmap.size = VIRT32_HIGH_PCIE_MMIO_SIZE;
    } else {
        virt_high_pcie_memmap.size = VIRT64_HIGH_PCIE_MMIO_SIZE;
        virt_high_pcie_memmap.base = s->memmap[VIRT_DRAM].base +
                                     machine->ram_size;
        virt_high_pcie_memmap.base =
            ROUND_UP(virt_high_pcie_memmap.base, virt_high_pcie_memmap.size);
    }

    /* register system main memory (actual RAM) */
    memory_region_add_subregion(system_memory, s->memmap[VIRT_DRAM].base,
                                machine->ram);

    /* boot rom */
    memory_region_init_rom(mask_rom, NULL, "riscv_virt_board.mrom",
                           s->memmap[VIRT_MROM].size, &error_fatal);
    memory_region_add_subregion(system_memory, s->memmap[VIRT_MROM].base,
                                mask_rom);

    /*
     * Init fw_cfg. Must be done before riscv_load_fdt, otherwise the
     * device tree cannot be altered and we get FDT_ERR_NOSPACE.
     */
    s->fw_cfg = create_fw_cfg(machine, s->memmap[VIRT_FW_CFG].base);
    rom_set_fw(s->fw_cfg);

    /* SiFive Test MMIO device */
    sifive_test_create(s->memmap[VIRT_TEST].base);

    /* VirtIO MMIO devices */
    for (i = 0; i < VIRTIO_COUNT; i++) {
        sysbus_create_simple("virtio-mmio",
            s->memmap[VIRT_VIRTIO].base + i * s->memmap[VIRT_VIRTIO].size,
            qdev_get_gpio_in(virtio_irqchip, VIRTIO_IRQ + i));
    }

    gpex_pcie_init(system_memory, pcie_irqchip, s);

    create_platform_bus(s, mmio_irqchip);

    serial_mm_init(system_memory, s->memmap[VIRT_UART0].base,
        0, qdev_get_gpio_in(mmio_irqchip, UART0_IRQ), 399193,
        serial_hd(0), DEVICE_LITTLE_ENDIAN);

    sysbus_create_simple("goldfish_rtc", s->memmap[VIRT_RTC].base,
        qdev_get_gpio_in(mmio_irqchip, RTC_IRQ));

    for (i = 0; i < ARRAY_SIZE(s->flash); i++) {
        /* Map legacy -drive if=pflash to machine properties */
        pflash_cfi01_legacy_drive(s->flash[i],
                                  drive_get(IF_PFLASH, 0, i));
    }
    virt_flash_map(s, system_memory);

    /* load/create device tree */
    if (machine->dtb) {
        machine->fdt = load_device_tree(machine->dtb, &s->fdt_size);
        if (!machine->fdt) {
            error_report("load_device_tree() failed");
            exit(1);
        }
    } else {
        create_fdt(s);
    }

    if (virt_is_iommu_sys_enabled(s)) {
        DeviceState *iommu_sys = qdev_new(TYPE_RISCV_IOMMU_SYS);

        object_property_set_uint(OBJECT(iommu_sys), "addr",
                                 s->memmap[VIRT_IOMMU_SYS].base,
                                 &error_fatal);
        object_property_set_uint(OBJECT(iommu_sys), "base-irq",
                                 IOMMU_SYS_IRQ,
                                 &error_fatal);
        object_property_set_link(OBJECT(iommu_sys), "irqchip",
                                 OBJECT(mmio_irqchip),
                                 &error_fatal);

        sysbus_realize_and_unref(SYS_BUS_DEVICE(iommu_sys), &error_fatal);
    }

    s->machine_done.notify = virt_machine_done;
    qemu_add_machine_init_done_notifier(&s->machine_done);
}

别看这个函数很长，实际上它做的事情很简单：

virt_machine_init()
  → riscv_socket_count()  // 创建 CPU Socket
  → memory_region_init() // 初始化内存区域
  → create_fdt()         // 生成设备树(DTB)

CPU socket 主要是可以按照簇（cluster）来创建多组 CPU 核心，然后按照地址空间初始化各种设备，最后为 virt 在内存中生成一个设备树（DTB），方便运行 Linux kernel。

┌───────────────────────────────────────────────────────────────┐
│                         RISC-V VIRT Machine                    │
│                    (created by virt_machine_init)              │
└───────────────────────────────────────────────────────────────┘

   CPU & Interrupt Subsystem
   ────────────────────────────────────────────────────────────────
   ┌───────────────┐    ┌───────────────┐    ┌───────────────┐
   │  Socket 0      │    │  Socket 1      │    │  Socket 2      │ ...
   │ (Hart Array)   │    │ (Hart Array)   │    │ (Hart Array)   │
   │ harts 0..X     │    │ harts N..M     │    │ ...            │
   └──────┬────────┘    └──────┬────────┘    └───────┬────────┘
          │                     │                     │
          │                     │                     │
     ┌────▼─────┐          ┌────▼─────┐          ┌────▼─────┐
     │ ACLINT / │          │ ACLINT / │          │ ACLINT / │
     │  CLINT   │          │  CLINT   │          │  CLINT   │
     └────┬─────┘          └────┬─────┘          └─────┬────┘
          │                     │                      │
          ▼                     ▼                      ▼
     ┌───────────┐        ┌───────────┐         ┌───────────┐
     │  IRQCHIP  │        │  IRQCHIP  │         │  IRQCHIP  │
     │ PLIC/APLIC│        │ PLIC/APLIC│         │ PLIC/APLIC│
     │ + IMSIC    │        │ + IMSIC   │         │ + IMSIC   │
     └───────────┘        └───────────┘         └───────────┘

   （其中：）
      • Socket0 IRQCHIP → 负责 MMIO + VirtIO + PCIe
      • Socket1 IRQCHIP → 负责 VirtIO + PCIe
      • Socket2 IRQCHIP → 负责 PCIe


   Memory Subsystem
   ────────────────────────────────────────────────────────────────
   Physical Address Space (system_memory)
   ┌───────────────────────────────────────────────────────────────┐
   │ 0x0000_0000 ───────────────────────────────────────────────┐   │
   │                       MROM (boot ROM)                      │   │
   ├────────────────────────────────────────────────────────────┤   │
   │                       DRAM (RAM)                           │   │
   ├────────────────────────────────────────────────────────────┤   │
   │                       Device MMIO                          │   │
   │   • CLINT / ACLINT                                         │   │
   │   • PLIC / APLIC + IMSIC                                   │   │
   │   • UART0                                                  │   │
   │   • RTC                                                    │   │
   │   • fw_cfg                                                 │   │
   │   • flash                                                  │   │
   │   • VirtIO-mmio buses                                      │   │
   │   • PCIE ECAM + MMIO window                                │   │
   └───────────────────────────────────────────────────────────────┘


   Platform & IO Devices
   ────────────────────────────────────────────────────────────────
    ┌───────────────────────┐
    │  UART0 (serial)       │ → IRQ via mmio_irqchip
    ├───────────────────────┤
    │  RTC (goldfish)       │ → IRQ via mmio_irqchip
    ├───────────────────────┤
    │  Test Device          │ (sifive_test)
    ├───────────────────────┤
    │  Flash (pflash)       │
    ├───────────────────────┤
    │  VirtIO-MMIO(0..7)    │ → IRQ via virtio_irqchip
    ├───────────────────────┤
    │  PCIE Root Complex    │ → IRQ via pcie_irqchip
    └───────────────────────┘

   Firmware and Configuration
   ────────────────────────────────────────────────────────────────
   • fw_cfg         — 用于传递 kernel / initrd / cmdline
   • FDT (DTB)      — 机器设备树，描述上述资源
   • machine_done   — 初始化结束回调

那么，是在什么位置加载的 OpenSBI 二进制程序呢？

加载客户机程序

有一点可以明确：存储 OpenSBI 的设备模型必须先被创建并初始化好，才能加载客户机程序二进制数据。按照这个思路，我们可以找到如下代码（实际上 QEMU 是在整个 virt Machine 就绪以后，才开始加载客户机程序，它被安排在 machine_done 回调中实现）：

virt_machine_done

static void virt_machine_done(Notifier *notifier, void *data)
{
    RISCVVirtState *s = container_of(notifier, RISCVVirtState,
                                     machine_done);
    MachineState *machine = MACHINE(s);
    hwaddr start_addr = s->memmap[VIRT_DRAM].base;
    target_ulong firmware_end_addr, kernel_start_addr;
    const char *firmware_name = riscv_default_firmware_name(&s->soc[0]);
	...

    firmware_end_addr = riscv_find_and_load_firmware(machine, firmware_name,
                                                     &start_addr, NULL);
	....
}

• firmware_name 被赋值为riscv_default_firmware_name(&s->soc[0])
• start_addr被赋值了s->memmap[VIRT_DRAM].base

riscv_default_firmware_name

hw/riscv/boot.c

const char *riscv_default_firmware_name(RISCVHartArrayState *harts)
{
    if (riscv_is_32bit(harts)) {
        return RISCV32_BIOS_BIN;
    }

    return RISCV64_BIOS_BIN;
}

在include/hw/riscv/boot.h中定义了

#define RISCV32_BIOS_BIN    "opensbi-riscv32-generic-fw_dynamic.bin"
#define RISCV64_BIOS_BIN    "opensbi-riscv64-generic-fw_dynamic.bin"

因此firmware_name被赋值为opensbi-riscv64-generic-fw_dynamic.bin

riscv_find_and_load_firmware

riscv_find_and_load_firmware的第二个参数是default_machine_firmware，字符串类型，而我们传入的就是opensbi-riscv64-generic-fw_dynamic.bin，这个函数调用riscv_find_firmware获取firmware字符串

hw/riscv/boot.c

target_ulong riscv_find_and_load_firmware(MachineState *machine,
                                          const char *default_machine_firmware,
                                          hwaddr *firmware_load_addr,
                                          symbol_fn_t sym_cb)
{
    char *firmware_filename;
    target_ulong firmware_end_addr = *firmware_load_addr;

    firmware_filename = riscv_find_firmware(machine->firmware,
                                            default_machine_firmware);

    if (firmware_filename) {
        /* If not "none" load the firmware */
        firmware_end_addr = riscv_load_firmware(firmware_filename,
                                                firmware_load_addr, sym_cb);
        g_free(firmware_filename);
    }

    return firmware_end_addr;
}

riscv_find_firmware

hw/riscv/boot.c

char *riscv_find_firmware(const char *firmware_filename,
                          const char *default_machine_firmware)
{
    char *filename = NULL;

    if ((!firmware_filename) || (!strcmp(firmware_filename, "default"))) {
        /*
         * The user didn't specify -bios, or has specified "-bios default".
         * That means we are going to load the OpenSBI binary included in
         * the QEMU source.
         */
        filename = riscv_find_bios(default_machine_firmware);
    } else if (strcmp(firmware_filename, "none")) {
        filename = riscv_find_bios(firmware_filename);
    }

    return filename;
}

这里看到如果我们没有通过-bios指定固件，就会加载 default_machine_firmware，也就是 OpenSBI。

riscv_load_firmware

riscv_load_firmware会加载firmware

hw/riscv/boot.c

target_ulong riscv_load_firmware(const char *firmware_filename,
                                 hwaddr *firmware_load_addr,
                                 symbol_fn_t sym_cb)
{
    uint64_t firmware_entry, firmware_end;
    ssize_t firmware_size;

    g_assert(firmware_filename != NULL);

    if (load_elf_ram_sym(firmware_filename, NULL, NULL, NULL,
                         &firmware_entry, NULL, &firmware_end, NULL,
                         0, EM_RISCV, 1, 0, NULL, true, sym_cb) > 0) {
        *firmware_load_addr = firmware_entry;
        return firmware_end;
    }

    firmware_size = load_image_targphys_as(firmware_filename,
                                           *firmware_load_addr,
                                           current_machine->ram_size, NULL);

    if (firmware_size > 0) {
        return *firmware_load_addr + firmware_size;
    }

    error_report("could not load firmware '%s'", firmware_filename);
    exit(1);
}

vCPU 执行的第一条指令

运行qemu-system-riscv64

$ ./build/qemu-system-riscv64 -M virt -s -S -nographic

这个命令让 QEMU 创建了一个 virt Machine，以 nographic 模式运行，串口输出到终端，默认 bios 使用 OpenSBI，并且开启了 gdbstub 远程调试功能，允许 riscv64-gdb 来调试客户机程序，默认端口号是 1234，同时停在第一条指令，等待 gdb 的连接。

然后

$ gdb -ex "set architecture riscv64" -ex "target remote localhost:1234"

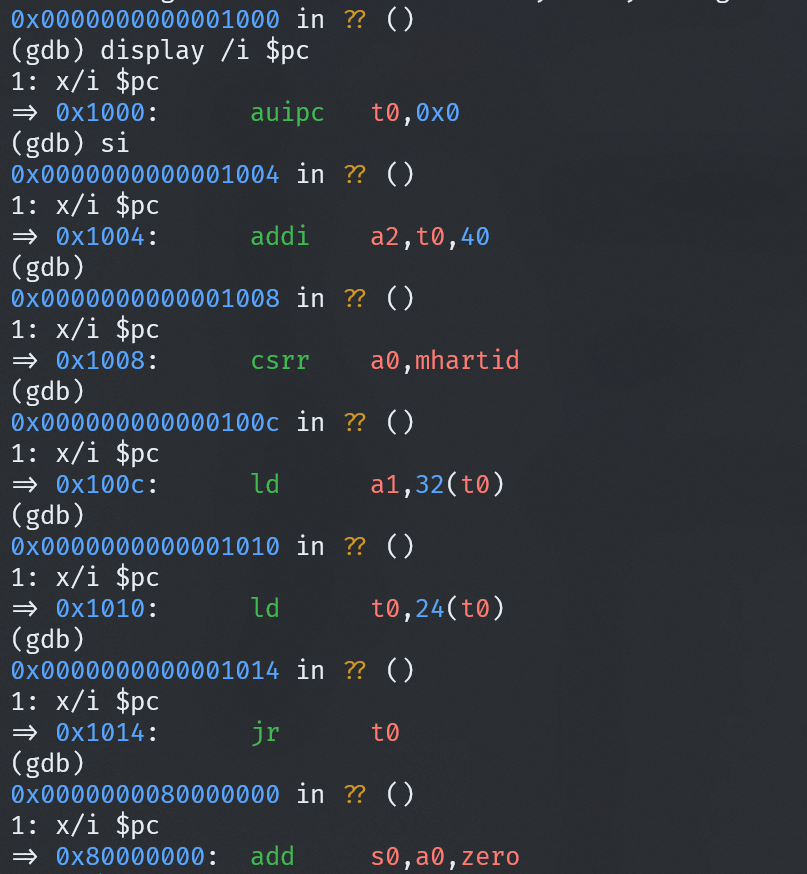

vCPU的第一条指令

此处对应源码初始化的位置在：

target/riscv/cpu.c

static void riscv_cpu_reset_hold(Object *obj, ResetType type)
{
#ifndef CONFIG_USER_ONLY
    uint8_t iprio;
    int i, irq, rdzero;
#endif
    CPUState *cs = CPU(obj);
    RISCVCPU *cpu = RISCV_CPU(cs);
    RISCVCPUClass *mcc = RISCV_CPU_GET_CLASS(obj);
    CPURISCVState *env = &cpu->env;

    if (mcc->parent_phases.hold) {
        mcc->parent_phases.hold(obj, type);
    }
#ifndef CONFIG_USER_ONLY
    env->misa_mxl = mcc->def->misa_mxl_max;
    env->priv = PRV_M;
    env->mstatus &= ~(MSTATUS_MIE | MSTATUS_MPRV);
    if (env->misa_mxl > MXL_RV32) {
        /*
         * The reset status of SXL/UXL is undefined, but mstatus is WARL
         * and we must ensure that the value after init is valid for read.
         */
        env->mstatus = set_field(env->mstatus, MSTATUS64_SXL, env->misa_mxl);
        env->mstatus = set_field(env->mstatus, MSTATUS64_UXL, env->misa_mxl);
        if (riscv_has_ext(env, RVH)) {
            env->vsstatus = set_field(env->vsstatus,
                                      MSTATUS64_SXL, env->misa_mxl);
            env->vsstatus = set_field(env->vsstatus,
                                      MSTATUS64_UXL, env->misa_mxl);
            env->mstatus_hs = set_field(env->mstatus_hs,
                                        MSTATUS64_SXL, env->misa_mxl);
            env->mstatus_hs = set_field(env->mstatus_hs,
                                        MSTATUS64_UXL, env->misa_mxl);
        }
        if (riscv_cpu_cfg(env)->ext_smdbltrp) {
            env->mstatus = set_field(env->mstatus, MSTATUS_MDT, 1);
        }
    }
    env->mcause = 0;
    env->miclaim = MIP_SGEIP;
    env->pc = env->resetvec;//设置PC值，第一条指令的位置
    env->bins = 0;
    env->two_stage_lookup = false;

    env->menvcfg = (cpu->cfg.ext_svpbmt ? MENVCFG_PBMTE : 0) |
                   (!cpu->cfg.ext_svade && cpu->cfg.ext_svadu ?
                    MENVCFG_ADUE : 0);
    env->henvcfg = 0;

    /* Initialized default priorities of local interrupts. */
    for (i = 0; i < ARRAY_SIZE(env->miprio); i++) {
        iprio = riscv_cpu_default_priority(i);
        env->miprio[i] = (i == IRQ_M_EXT) ? 0 : iprio;
        env->siprio[i] = (i == IRQ_S_EXT) ? 0 : iprio;
        env->hviprio[i] = 0;
    }
    i = 0;
    while (!riscv_cpu_hviprio_index2irq(i, &irq, &rdzero)) {
        if (!rdzero) {
            env->hviprio[irq] = env->miprio[irq];
        }
        i++;
    }

    /*
     * Bits 10, 6, 2 and 12 of mideleg are read only 1 when the Hypervisor
     * extension is enabled.
     */
    if (riscv_has_ext(env, RVH)) {
        env->mideleg |= HS_MODE_INTERRUPTS;
    }

    /*
     * Clear mseccfg and unlock all the PMP entries upon reset.
     * This is allowed as per the priv and smepmp specifications
     * and is needed to clear stale entries across reboots.
     */
    if (riscv_cpu_cfg(env)->ext_smepmp) {
        env->mseccfg = 0;
    }

    pmp_unlock_entries(env);
#else
    env->priv = PRV_U;
    env->senvcfg = 0;
    env->menvcfg = 0;
#endif

    /* on reset elp is clear */
    env->elp = false;
    /* on reset ssp is set to 0 */
    env->ssp = 0;

    env->xl = riscv_cpu_mxl(env);
    cs->exception_index = RISCV_EXCP_NONE;
    env->load_res = -1;
    set_default_nan_mode(1, &env->fp_status);
    /* Default NaN value: sign bit clear, frac msb set */
    set_float_default_nan_pattern(0b01000000, &env->fp_status);
    env->vill = true;

#ifndef CONFIG_USER_ONLY
    if (cpu->cfg.debug) {
        riscv_trigger_reset_hold(env);
    }

    if (cpu->cfg.ext_smrnmi) {
        env->rnmip = 0;
        env->mnstatus = set_field(env->mnstatus, MNSTATUS_NMIE, false);
    }

    if (kvm_enabled()) {
        kvm_riscv_reset_vcpu(cpu);
    }
#endif
}

可以看到 env->pc 被赋值为 env->resetvec，而 resetvec 的默认值是：

//cpu_bits.h
/* Default Reset Vector address */
#define DEFAULT_RSTVEC      0x1000

参考：

Learning Qemu Docs

https://gevico.github.io/learning-qemu-docs/
